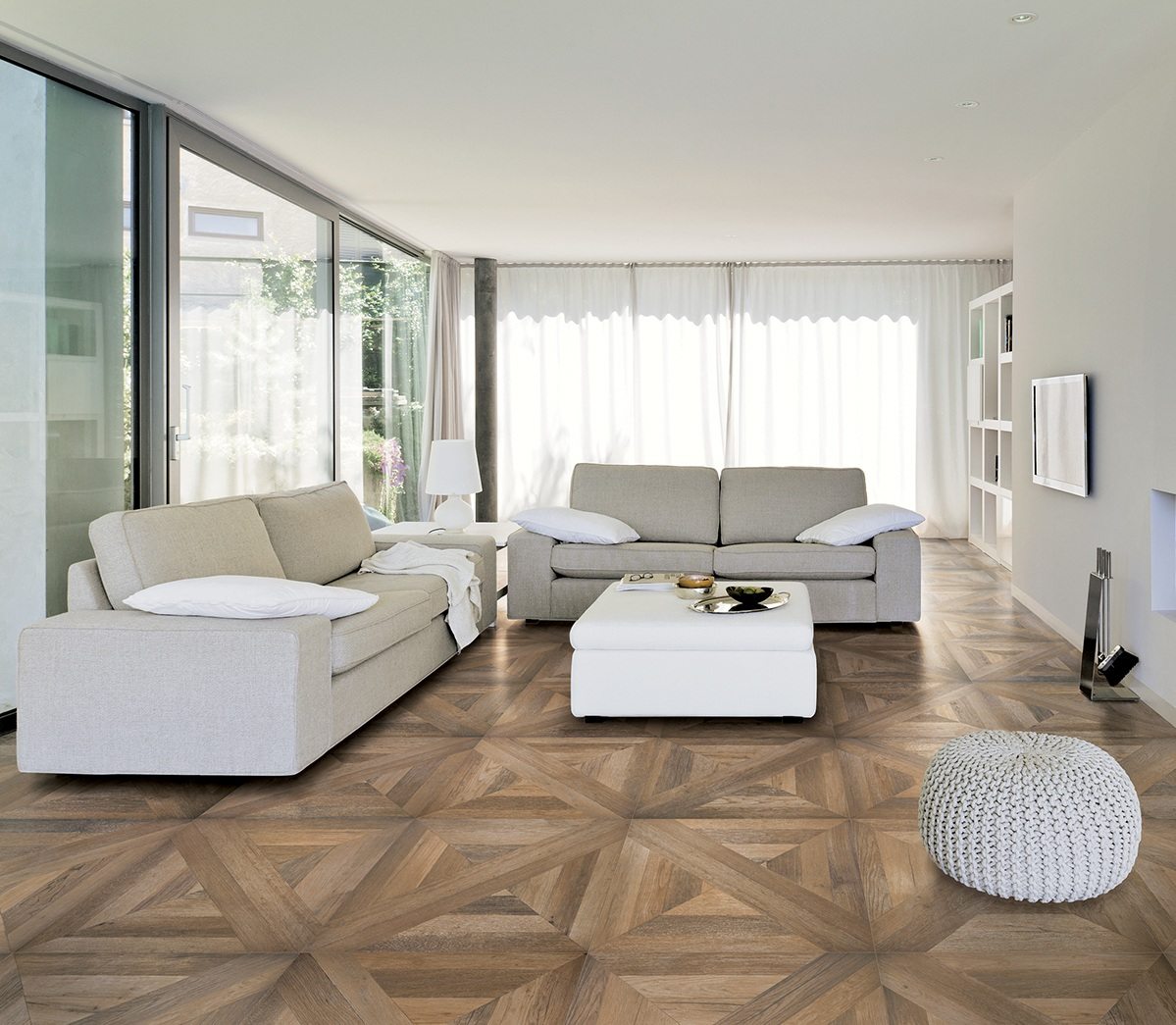

The Mansion range evokes the prestige and charm of old floorboards which have been restored, enhancing the rustic effect of this natural material with the most innovative techniques in porcelain production.
Product name: Mansion 30” x 30” Arcade (M)
Part number: PO1830-303000
Availability: In Stock
Dimensions: 29.53'' x 29.53'' = 6.055 sqft
Grout joint recommendation: 1/16"
Due to the inherent characteristics of porcelain, there may be variations in color, movement and texture from lot to lot.
Wet Area: Yes
Steam Shower: Yes
Traffic: Heavy Commercial
Fireplace Surround: Yes
The performance of surface covering products often depends on installation, environmental, and usage factors unique to each project. AKDO is not responsible for any effects that may be caused to products due to installation, wear from use, or exposure to environmental factors including but not limited to: hard water, chemicals, heat, flame, smoke, dirt or other substances. It is your responsibility to assess the project to determine if the product you are selecting is appropriate considering the unique characteristics of your installation, and to apply appropriate, high quality sealers when necessary. Please consult your installer for more information.
Abrasion Resistance – ISO 10545-6 Compliant
Barefoot Ramp Test – DIN 51097 A+B
Chemical Resistance – ISO 10545-13 Compliant
Coefficient of Thermal Linear Expansion – ISO 10545-8 ² 7 _ MK-1
DCOF – ANSI A.137.1 Compliant
Frost Resistance – ISO 10545-12 Compliant
Coefficient of Restitution – ISO-10545-5 Compliant
Bending Resistance – ISO 10545-4 Compliant
Moisture Expansion – ISO 10545-10 ² 0.01% (0.1mm/m)
Reaction to Fire – EN 13501-1 A1fl
Regularity of Length & Width – ISO 10545-2 Compliant
Regularity of Rectangularity – ISO 10545-2 Compliant
Regularity of Straightness of Sides – ISO 10545-2 Compliant
Resistance to Household Chemicals – ISO 10545-13 Compliant
Resistance to Swimming Pool Salts – ISO 10545-13 Compliant
Booted Ramp Test – DIN 51130 R10
Surface Flatness – ISO 10545-2 Compliant
Water Absorption – ISO 10545-3 0.2%
IEQ – Low-emitting materials: < 1 mg/Kg
MR – Materials & Resources – Recycled Content: 20% pre-consumer recycled material
